WK02
History of Computer Graphics
CAD → NURBS → parametricism · the agentic-AI question
Lecture Slides
A History of Representational Tools
LAAR 61400 · Week 02
Charles Eliot — Sudbury Valley survey map
Warren Manning — Billerica Town Forest map
Jacqueline Tyrwhitt — sieve-map method, 1950
Ian McHarg — Design with Nature layer-cake overlay diagram
SYMAP at a mainframe console

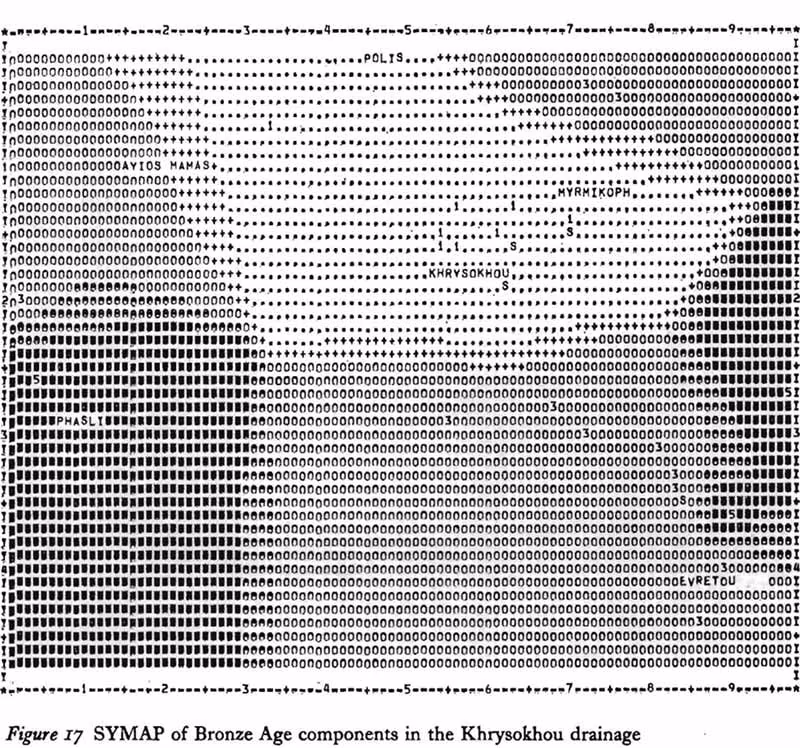

SYMAP line-printer map, 1963
The punch cards that held the SYMAP program
Carl Steinitz
Jack and Laura Dangermond

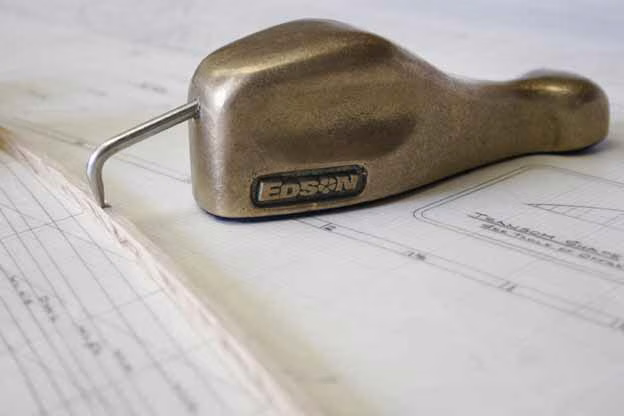

An Edson bronze spline weight (duck) resting on lofting drawings

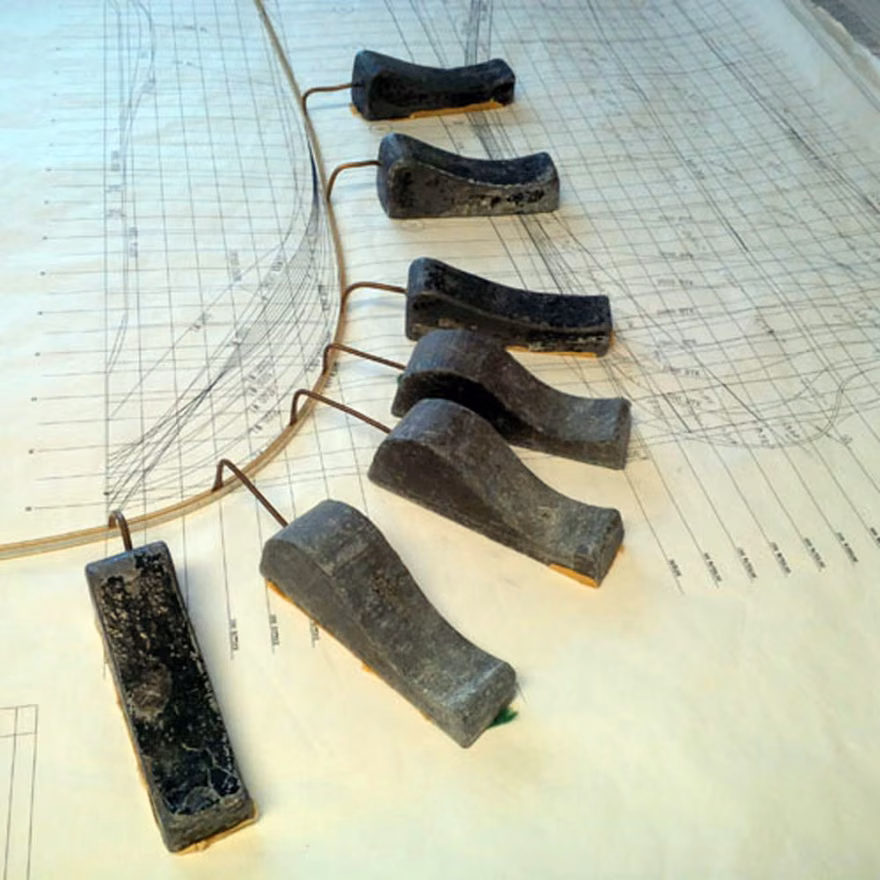

A row of ducks fairing a wooden spline batten across hull lines
B-SPLINE CURVE P0 P1 P2 P3 P4 control polygon (dashed) + smooth curve NURBS SURFACE
FROM B-SPLINE TO GRASSHOPPER 1967 “B-spline” named Schoenberg coins the term 1972 Cox–de Boor recurrence makes B-splines computable 1973 Riesenfeld thesis → Utah with Elaine Cohen · geometry lab 1975 Versprille thesis non-uniform + rational form 1980 NURBS named Boeing TIGER · R. Blomgren 1984 AGLib kernel Applied Geometry (Blomgren) 1994 McNeel licenses AGLib Sculptura plug-in · M. Gibson 1998 Rhino 1.0 Robert McNeel & Assoc. 2007 Grasshopper David Rutten · visual programming
NURBS SURFACE smooth, mathematically defined — resolution-independent
Low-poly mesh model with visible polygon facets
Sketchpad
IBM PC, 1982
Man using AutoCAD on a PC, 1987
Architecture office before the 1980s
Computers at NASA / JPL-Caltech
Martha Schwartz, Jacob Javits Plaza, New York, 1997
James Corner Field Operations, Philadelphia Navy Yards Central Green, 2015
James Corner and Alex MacLean, Taking Measures Across the American Landscape, 1996
James Corner and Alex MacLean, Taking Measures Across the American Landscape, 1996
Bradley Cantrell, Digital Drawing for Landscape Architecture, 2010
Diana Balmori, Drawing and Reinventing Landscape, 2014
Nadia Amoroso, Representing Landscapes: Digital, 2015

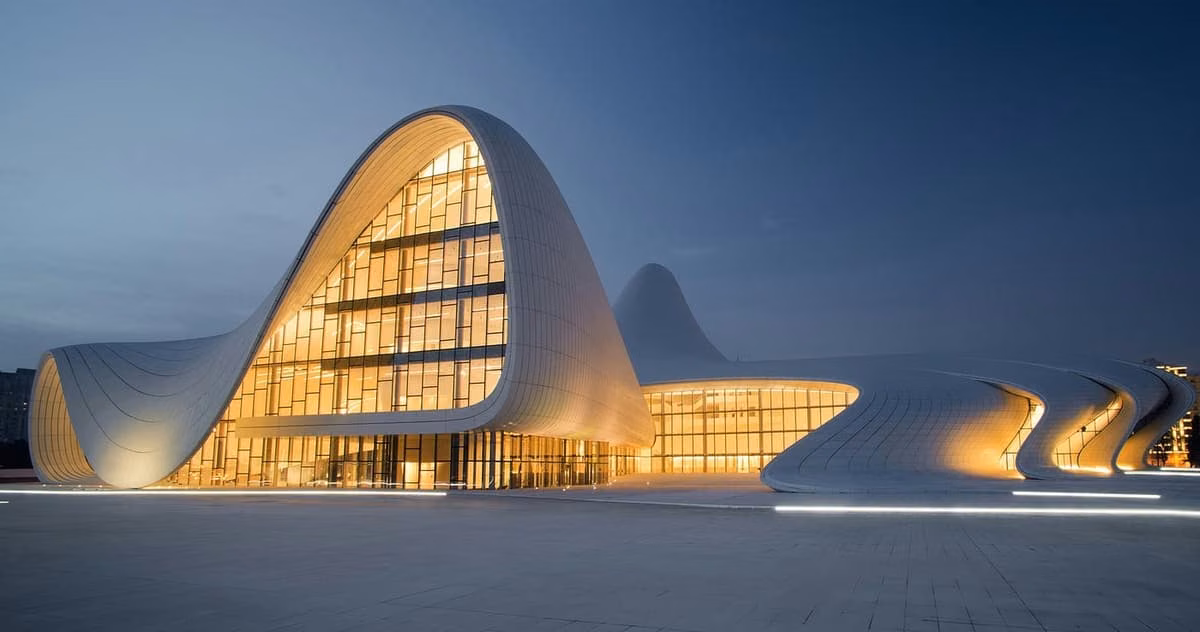

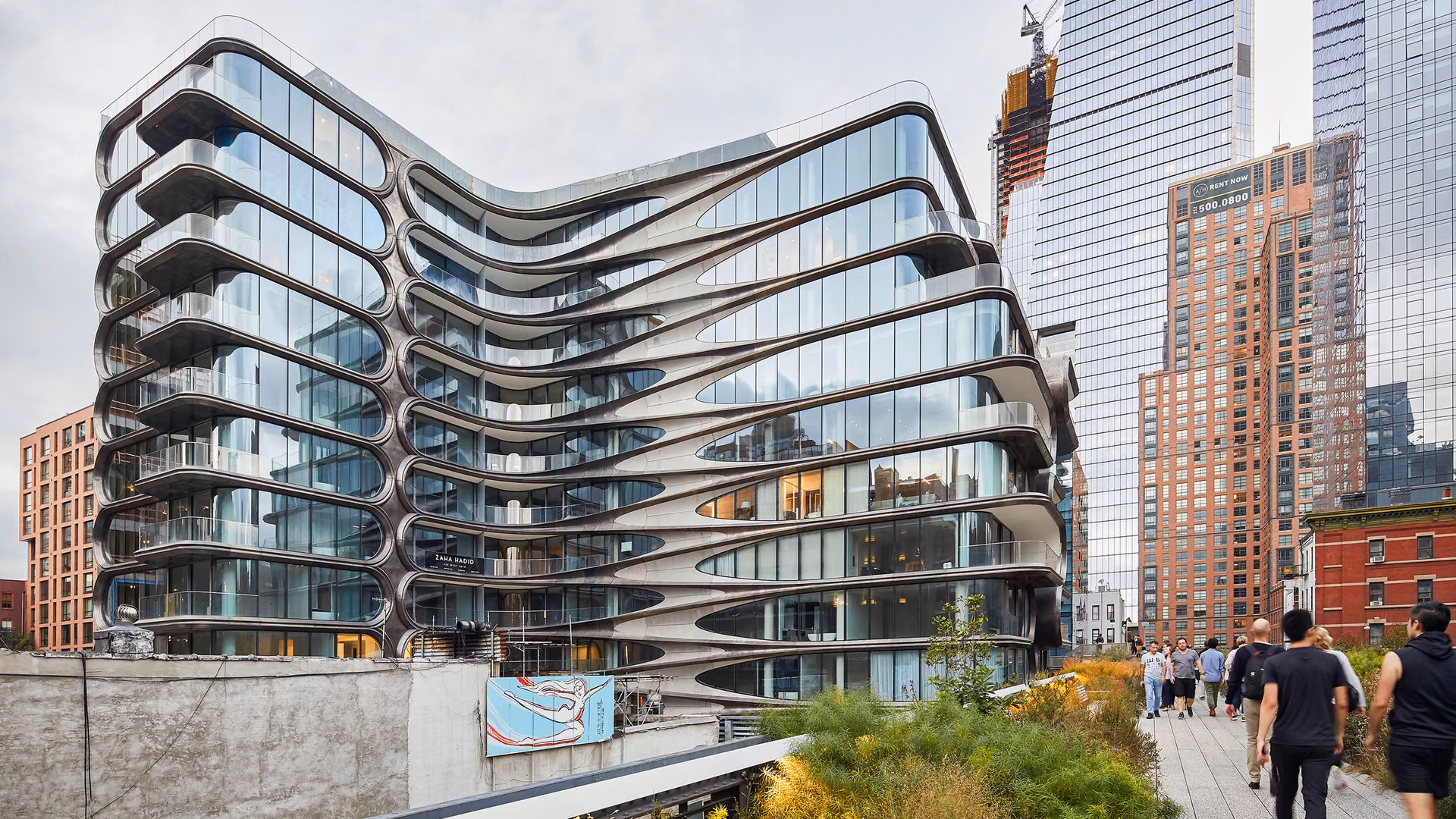

Zaha Hadid
Zaha Hadid

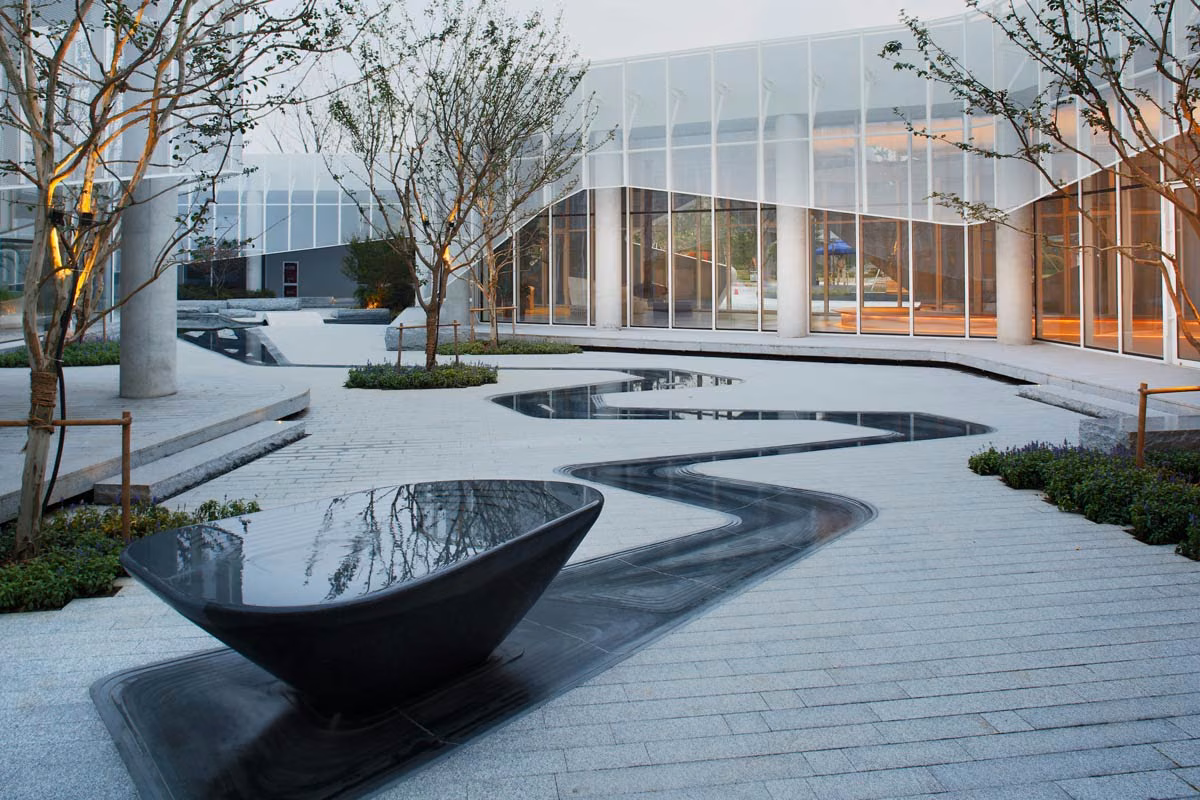

Z+T Studio
Z+T Studio

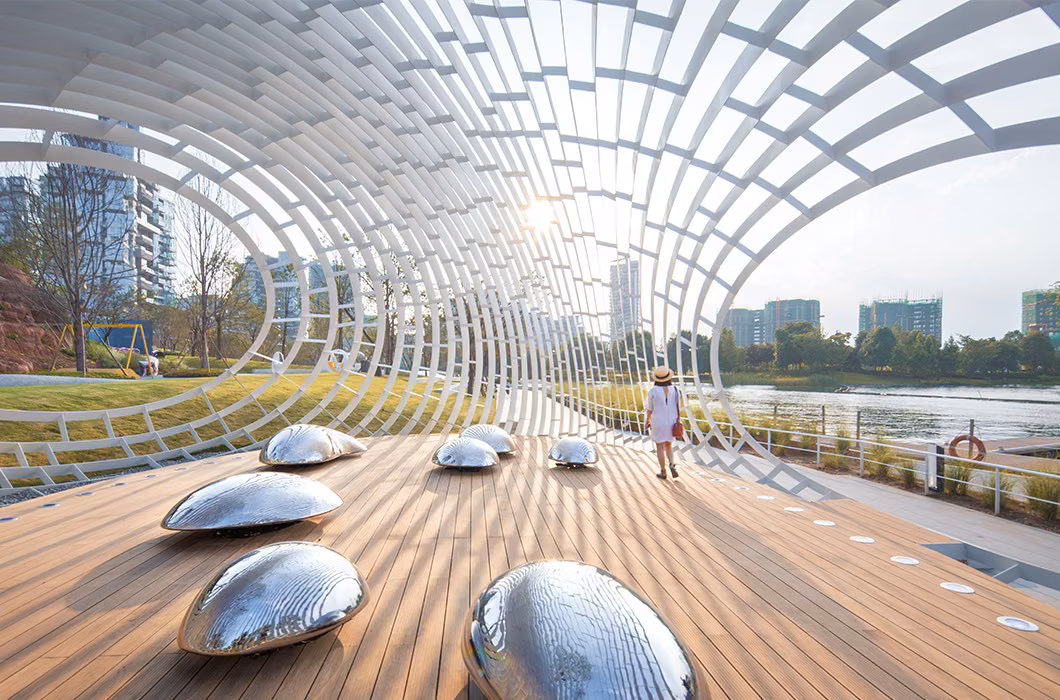

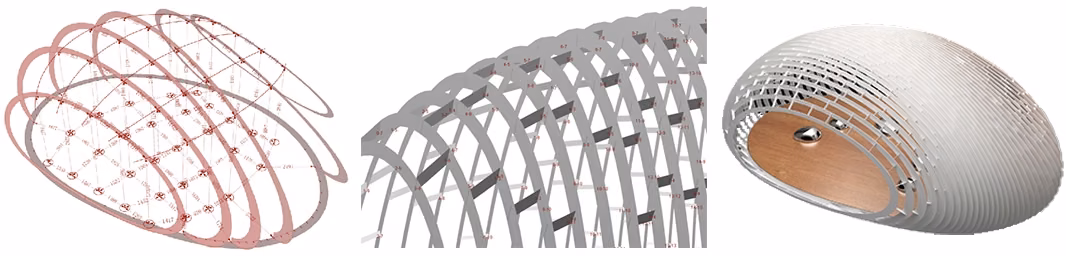

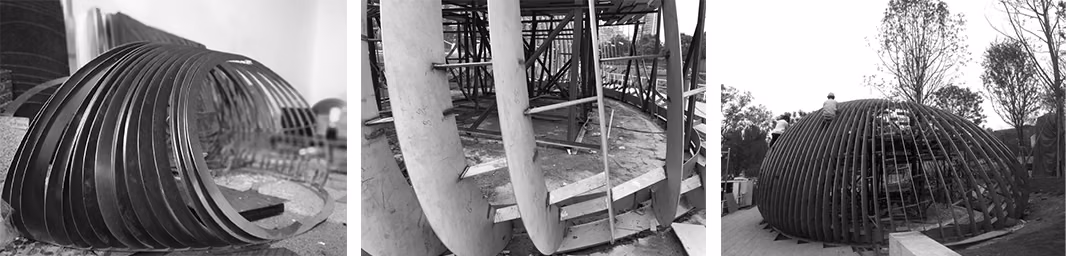

Z+T Studio, parametric construction
Z+T Studio, parametric construction

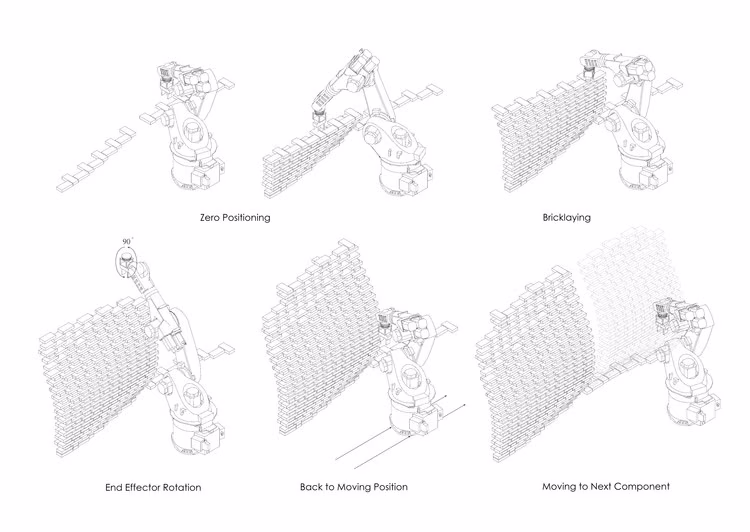

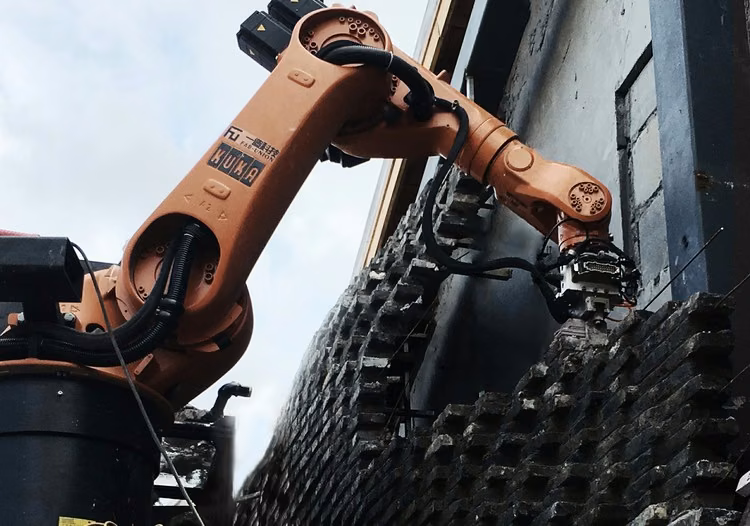

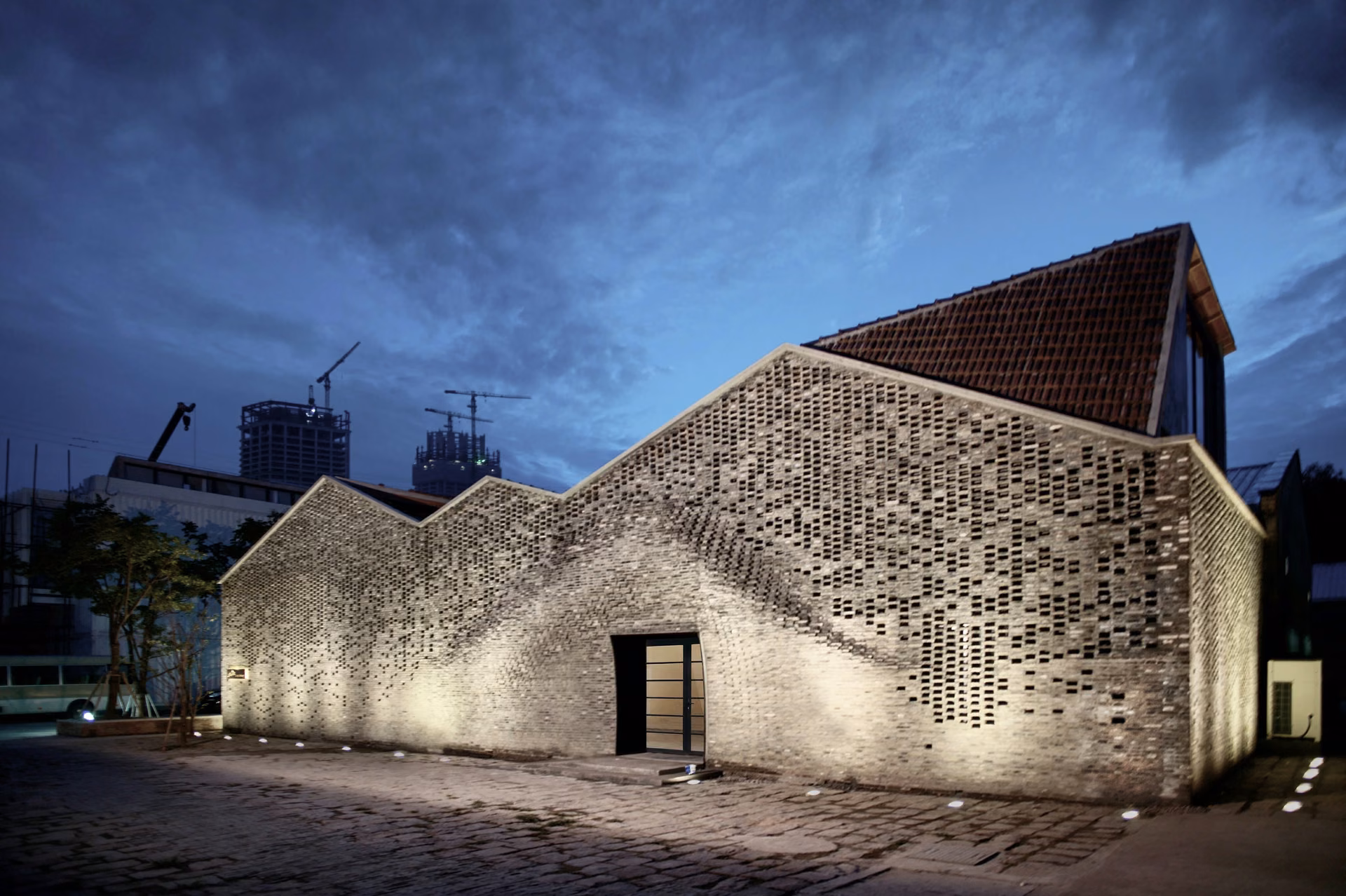

Philip Yuan, Chi She, robotic construction
Philip Yuan, Chi She, robotic construction
Philip Yuan, Chi She, robotic construction
Philip Yuan, Chi She, robotic construction
Fletcher Studio, South Park

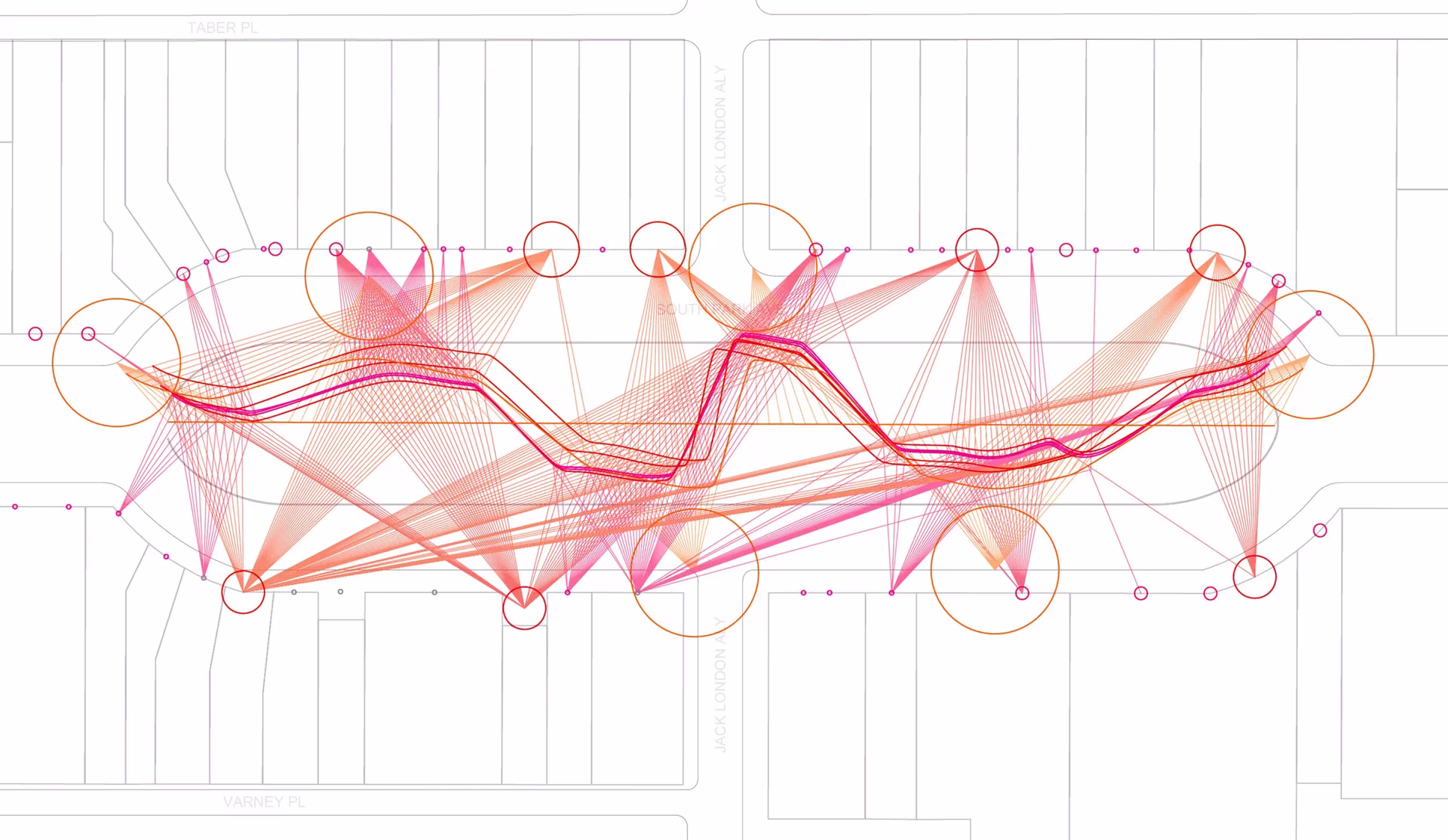

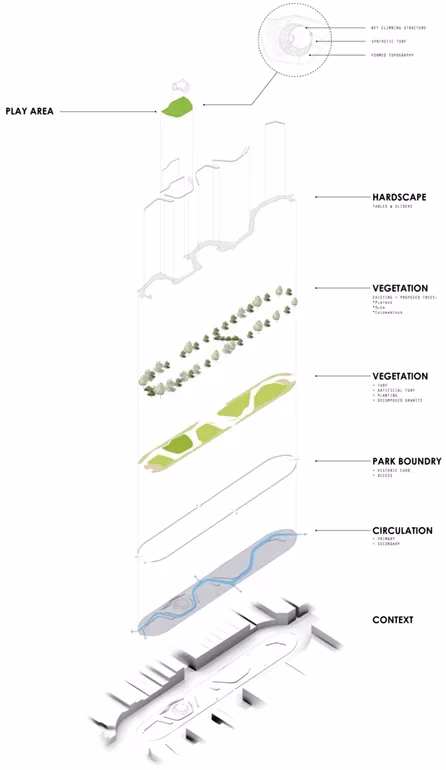

Fletcher Studio, South Park parametric analysis
Fletcher Studio, South Park parametric analysis

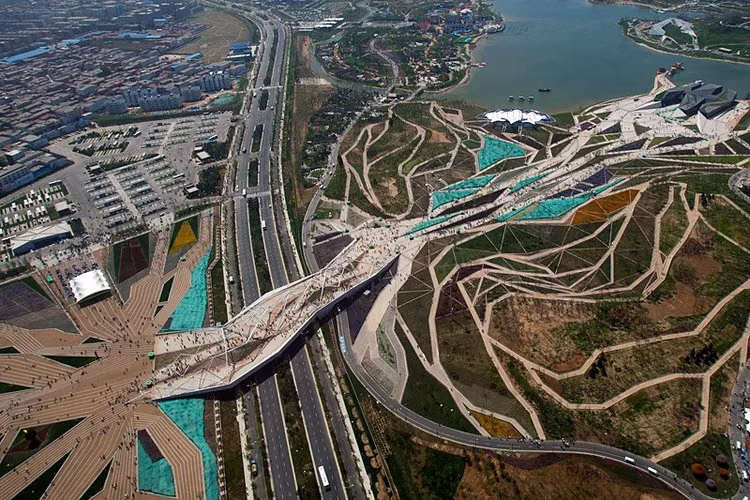

Plasma Studio and Groundlab, Xi'an Expo Flow Garden

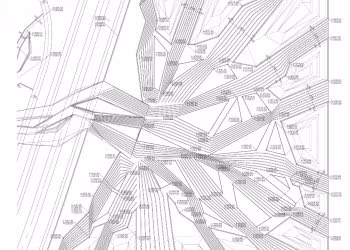

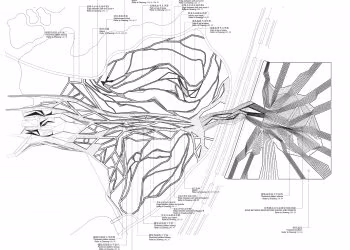

Xi'an Expo Flow Garden detail
Xi'an Expo Flow Garden detail

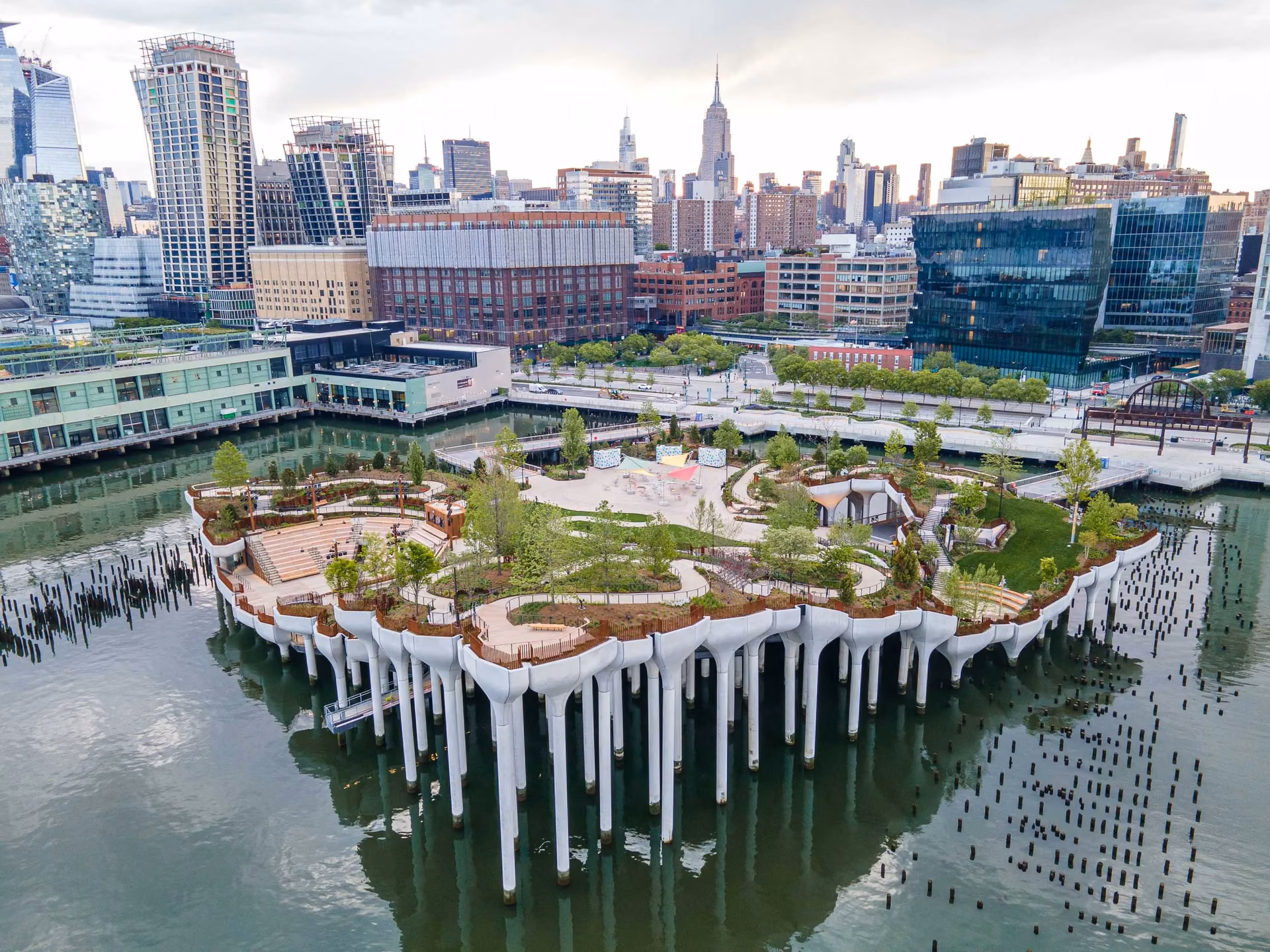

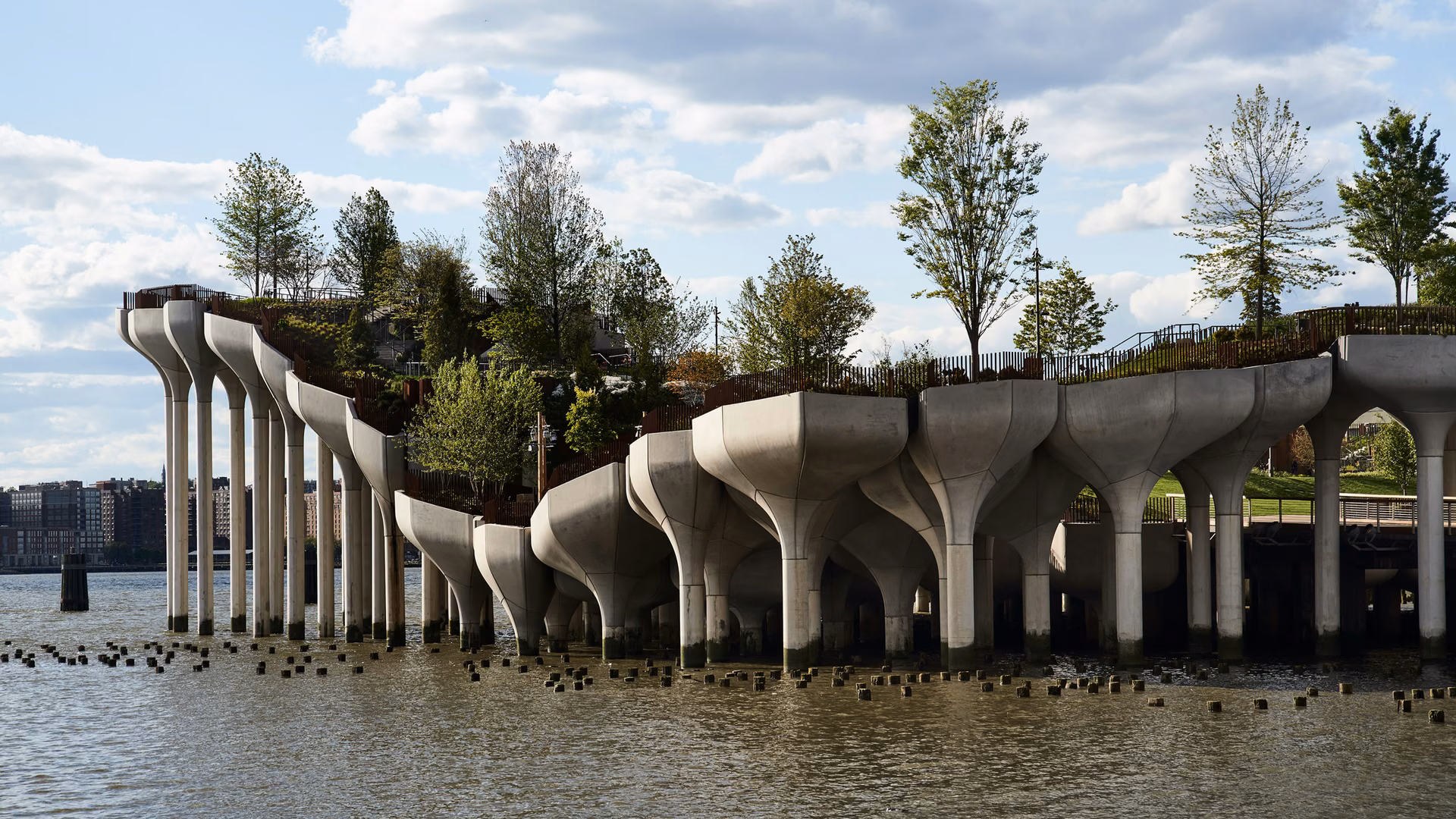

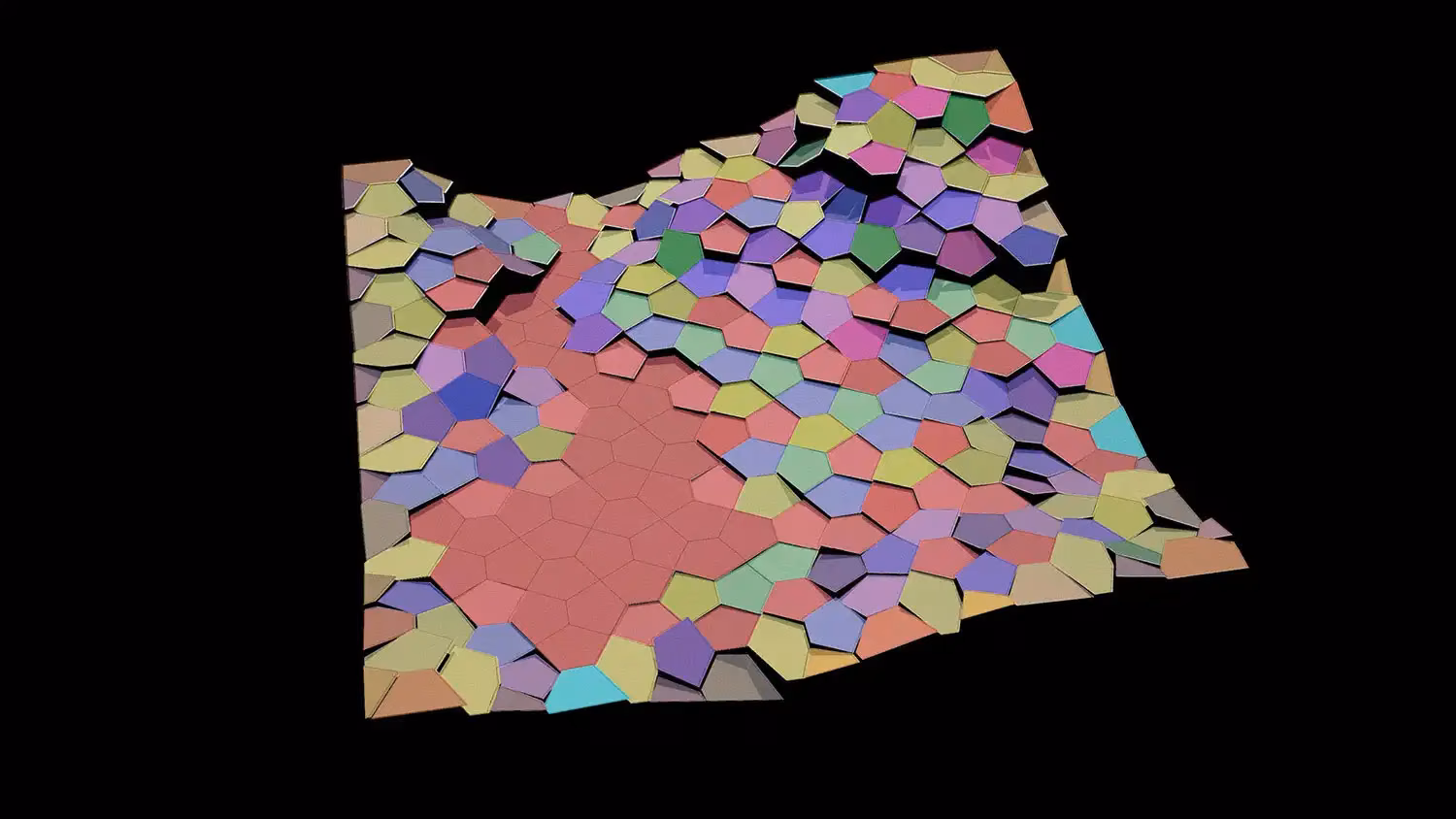

Little Island, New York, 2021
Little Island, New York, 2021
Little Island, New York, 2021
Little Island, New York, 2021

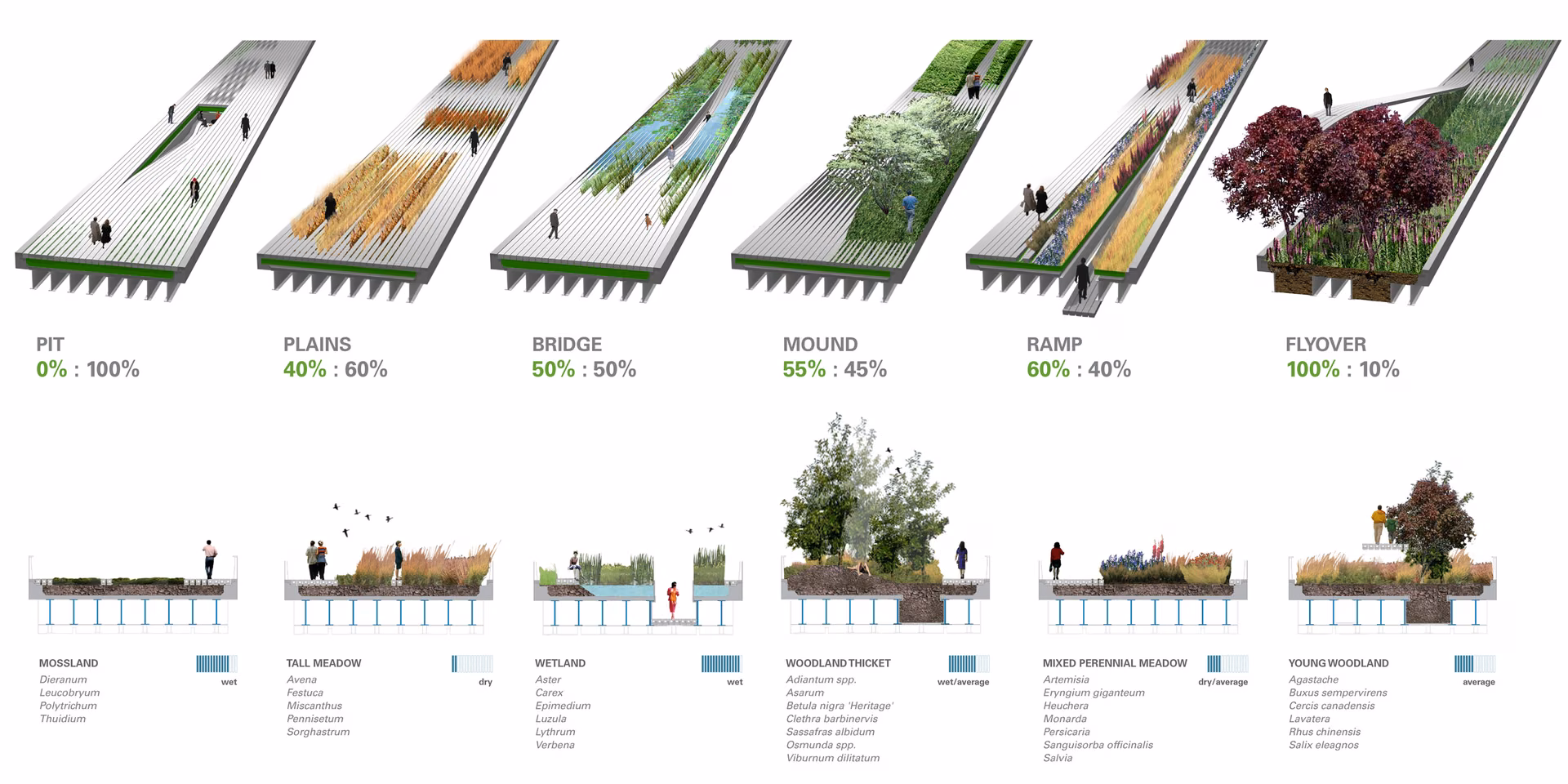

Field Operations and Diller Scofidio + Renfro, The High Line, 2009
Bradley Cantrell — sensing and responsive landscapes
TYPICAL DESIGN WORKFLOW — TOOLS PER PHASE 1 Site Research & Analysis GIS Photoshop Illustrator 2 Conceptual Design Rhino CAD Rendering Photoshop Trace paper 3 Design Development CAD 4 Construction Documentation CAD AutoCAD carries the rest of the way In a way, all you need to learn is AutoCAD.
ChatGPT-generated design board
ChatGPT-generated design board
/ 27
A Genealogy of Landscape Representation Tools

Not exhaustive — not all tools listed are in wide use in landscape practice.
Dates, makers, and acquisitions in the tooltips are drawn from published sources — see References ↓
Made with AI, may contain errors.

Drafting
Analysis
Modeling
Communication
Each bar spans a tool's lifespan · hover for detail

Scroll the timeline horizontally →

Computational representation did not begin with the PC. Sketchpad (1963), SYMAP (1963), and Esri's founding consulting work (1969) predate commercial software by two decades — but they lived in labs and on minicomputers, inaccessible to practitioners. The 1982 line is when the ecosystem actually opens: IBM PC, AutoCAD, and ARC/INFO all arrive the same year.

The tools never replaced each other. They accumulated. Almost none were built for landscape — borrowed from defense, car factories, highways, the movies, games. The Communication stack is the largest because the discipline is a visual culture. That imbalance is the argument.

The right edge is a question, not a tool. Agentic AI is drawn as the grey zone every bar dissolves into — not as a bar of its own. It does not sit in one category; it washes across all of them at once. Is it a tool on this chart, or something else?
